ATOMSTACK S10 X7 A10 PRO 50W CNC Laser Engraving Machine 410x420mm High-precision Fixed-Focus Cutting Device PK Sculpfun S10

100% of buyers enjoyed this product! 11 orders
List price:
Price:
You save:
(%)
List price:
Price:
You save:
()
()
Total Price:
Best price guarantee
Quantity:
View cart
  • 100% Money Back Guarantee
  • 100% Secure Payments
Buyer Protection
Safe shopping
Easy returns and refunds
Free Shipping Worldwide

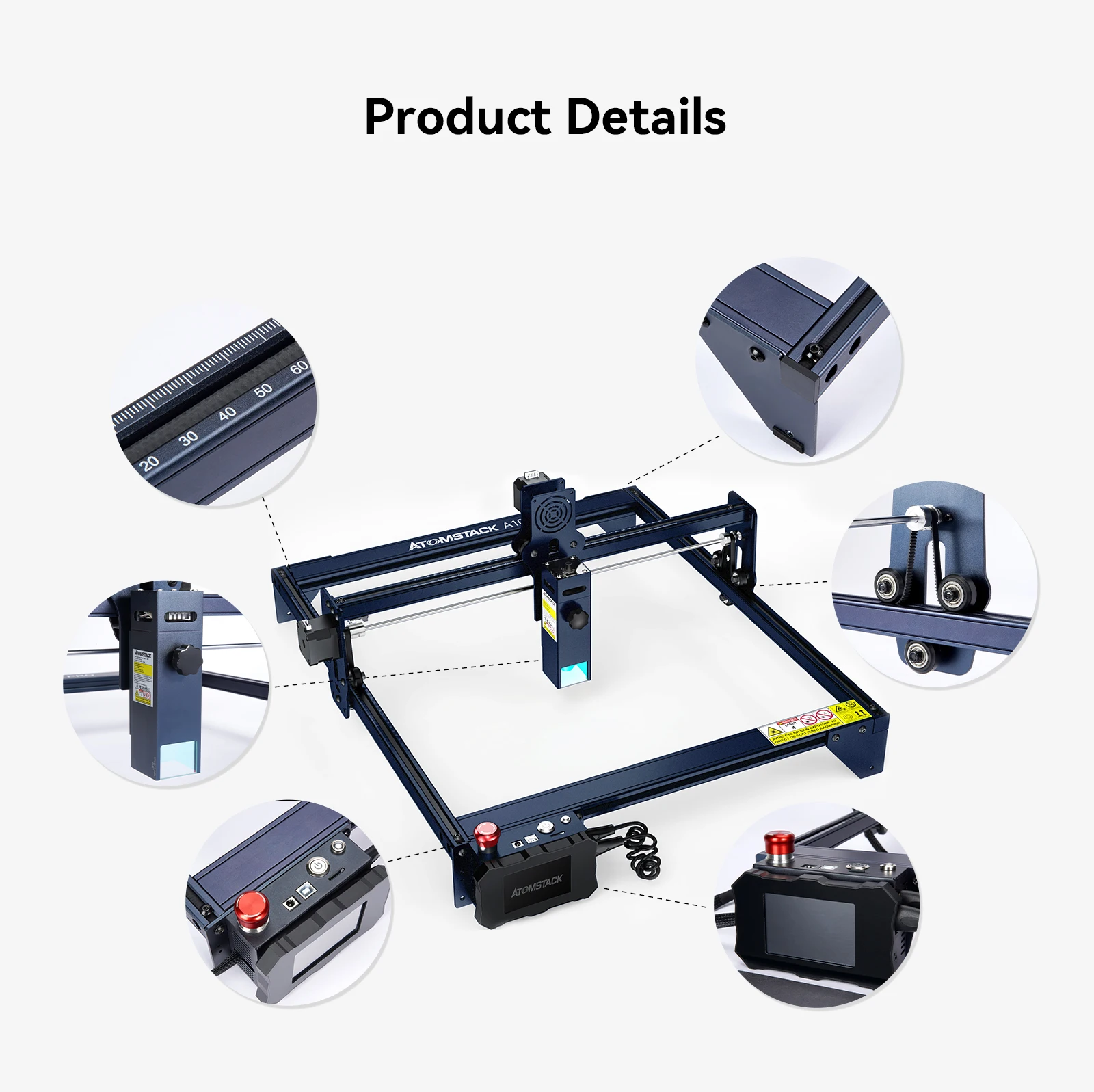

Product Details
Item Specifics
Product Details

To customers (especially high tariff countries such as Chile/Mexico/Canada/Japan/Brazil):Please note that the price of our products (ships from China) not include customs clearance duties.Buying from us, you will pay much less duty than you actually need to pay.

Features:

1.The new filter panoramic glasseye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.

2.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

3、Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

6.Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.

7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

8.New laser with knob: It is more convenient and quick to adjust the height of the laser.

9. Support offline engraving: ATOMSTACK A10 PRO configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

10. The laser sintering temperature is up to 1200℃

11. Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer

12. Stopper: Yes

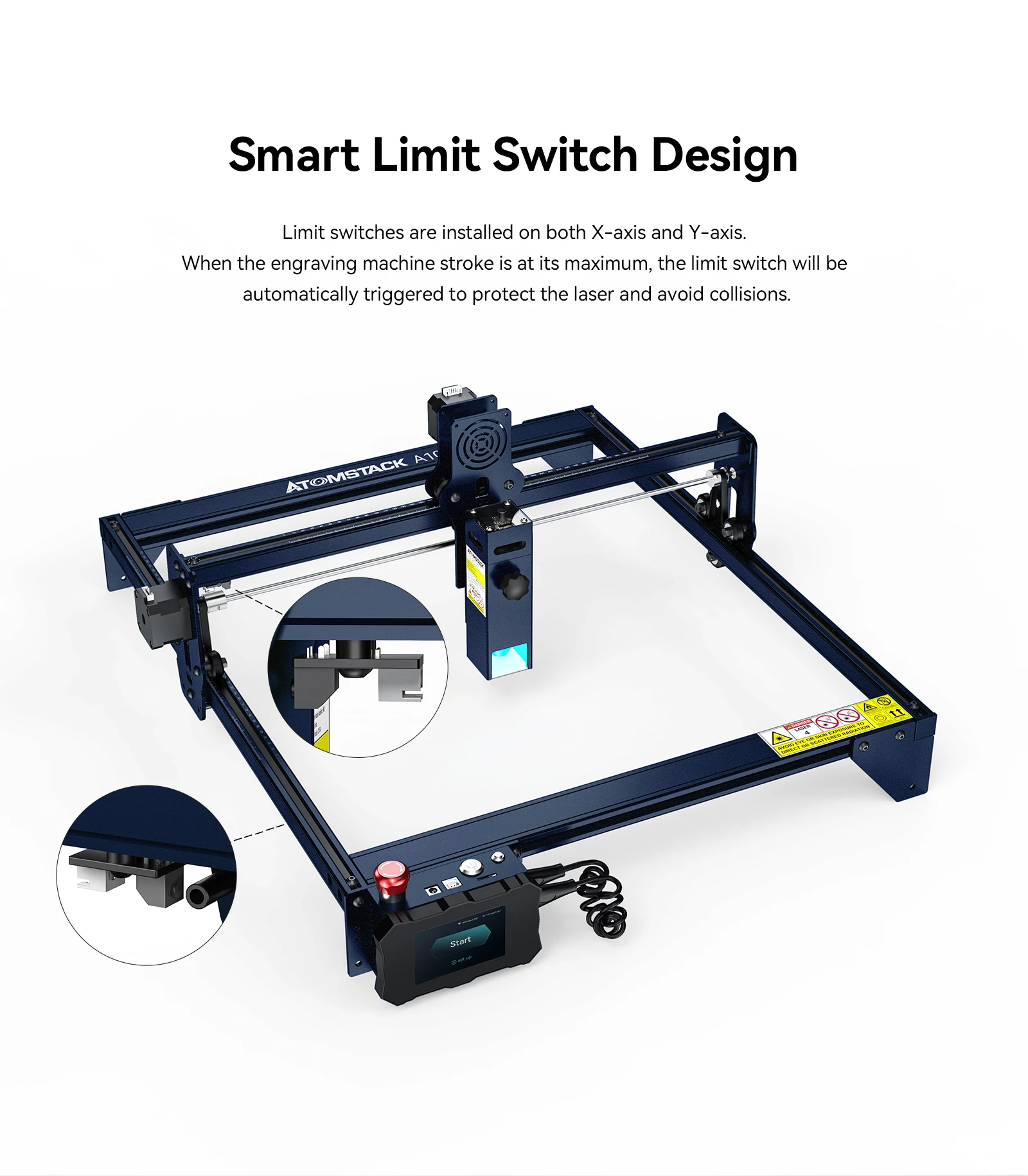

13. Reset switch: Yes

14. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

Product description:

Item model number: ATOMSTACK A10 PRO

Print Size: Recommend Print Size 410*400mm

Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective

Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;

Laser power: 50W

Laser output power: 10-11W

Wave Length: 445 ± 5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser, no need to focus

Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.

Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection.

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 5A

Certification: CE FCC RoHS FDA PSE

Honeycomb Product parameters:

Material: high-strength steel

Product size: 380*284*22mm

Product net weight: 1.9KG

Cutting pad: SUS304,390*300*0.5mm

Package weight: 2.1KG

Packing size: 420*335*50mm

Packing list:

Honeycomb board*1

Bolt*4

Nut*4

Magnetic nail*4

Honeycomb board briquetting *4

Cutting pad *1

Manual *1

Air Assist :

1. ATOMSTACK air auxiliary accessories, equipped with 10-30L/min adjustable airflow, can effectively remove the smoke and dust generated in the process of laser cutting/engraving, prevent the smoke and dust from causing laser energy attenuation, ensure the stability of laser energy, and make your engraving / engraving Cut pieces for best results.

2. ATOMSTACK air-assisted accessories, powerful airflow can quickly reduce the surface temperature of the cutting/engraving object, prevent excessive burning, and make the cutting edge cleaner and smoother.

3. Only 60dB noise is generated during the working process, which is similar to the volume of household electric fans when working, giving you a quiet laser engraving and cutting environment.

4. Easy to install and use, no need to buy additional accessories, just two steps to install and use.

5. Compatible with all ATOMSTACK engraving machine models.

Extension Kit  :

Brand: ATOMSTACK

Y-axis extension shaft size: 1020mm

Engraving enlargement size: 410*850mm

Product net weight: 1.16Kg

Single package weight: 1.9Kg

Packing size: 1125*305*150mm

R3 Roller Features:

1: The diameter can be adjusted in 8 steps, and the engraving diameter can be as small as 4mm.

2: Concentric design, adjustment-free timing belt.

3: All metal structure, safe and stable.

4: Closed design, the motor is not exposed, safer.

5: Roller protruding design, no obstruction, unlimited length of engraved objects.

6: One-piece rubber roller, hardness up to 70A, stronger friction, more stable engraving process.

7: Engraving: longer cylinders, small diameter cylinders, over-length plate engraving, over-length plate cutting.

8. The linear speed is applicable to 95% of the engraving machines on the market, including ATOMSTACK, NEJE, Ortur, Twotrees, etc.

9: No installation, no adjustment, ready to use after unpacking.

10: Applicable models: frame engraving machine, portable engraving machine

Note:

●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

● Please do not touch the laser emitter with your hand, or it may burn your hand.

● Please avoid strong impact on the machine.

● Children under 14 are not allowed to use this product and children over 14 need adult supervision.

● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

Item Specifics
Frame Material:
Sheet Metal + Aluminum Profile
Accessories 4:
Honeycomb
Accessories 3:
Extension Axis
Accessories 2:
Air assist
Accessories 1:
R3 Roller
Package Weight:
6kg/13.2lbs
Package Size:
59.5*35*13cm/ 23*13.8*5.1in
Output Voltage:
50W
focusInput Voltage:
AC100-240V, 50/60Hz
Engraving accuracy:
0.01mm
Focusing method:
fixed focus laser, no need to focus
Wave Length:
445 ± 5nm
Laser output power:
10-11W
Laser power:
50W
Voltage:
110-220V
Maximum Working Speed:
1000MM/Min
Interface Type:
USB
Molding Technology:
LNNS
File Format:
NC BMP JPG PNG DXF etc.
Operating System:
Win XP/Win7/Win8/XP/Win10 system
Precision:
0.01mm
Power Supply:
Universal Standard Power Supply
Slice Software:
LaserGRBL LightBurn
Fliament:
Wood, bamboo etc
Language:
english
Certification:
CE
Maximum Print Size:
410x420mm
Auto Leveling:
YES
Maximum Printing Speed:
1000MM/Min
Bed Temp:
1200℃
Origin:
Mainland China
CE Certification:
Yes
Brand Name:
Sinomax
